X-65-B

X-65-B ; Pilot Electric Mfg. (ID = 597377) Radio

X-65-B ; Pilot Electric Mfg. (ID = 597378) Radio
X-65-B ; Pilot Electric Mfg. (ID = 2578958) Radio X-65-B ; Pilot Electric Mfg. (ID = 2578956) Radio
X-65-B ; Pilot Electric Mfg. (ID = 2578957) Radio X-65-B ; Pilot Electric Mfg. (ID = 2578955) Radio
X-65-B ; Pilot Electric Mfg. (ID = 505073) Radio X-65-B ; Pilot Electric Mfg. (ID = 505368) Radio
X-65-B ; Pilot Electric Mfg. (ID = 505369) Radio
Use red slider bar for more.
X-65-B ; Pilot Electric Mfg. (ID = 2578958) Radio

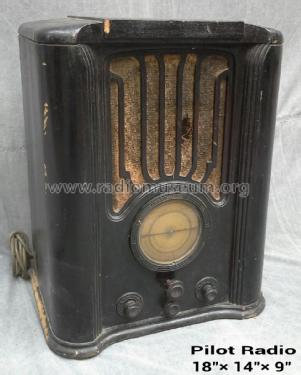

Pilot Electric Mfg.: X-65-B [Radio] ID = 2578958 961x1196
Select picture or schematic to display from thumbnails on the right and click for download.
For model X-65-B, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1935 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6D6 6A7 6D6 75 42 80
Main principle Superhet with RF-stage
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: X-65-B - Pilot Electric Mfg. Co. Radio
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 14.75 x 18.5 x 10.25 inch / 375 x 470 x 260 mm
Notes There is also an X-65-F long wawe model. Riders lists only X-65 (which may refer to the basic/chassis model).
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before

Model page created by Howard Craven. See "Data change" for further contributors.
