Solid State AM/FM Multiplex Receiver SX-1000TA

Pioneer Corporation; Tokyo

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1969
  • Categoría
  • Radio - o Sintonizador pasado WW2
  • Radiomuseum.org ID
  • 142625

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

 Especificaciones técnicas

  • Numero de valvulas
  • 3
  • Numero de transistores
  • 43
  • Principio principal
  • Superheterodino en general; ZF/IF 455/10700 kHz
  • Gama de ondas
  • OM y FM
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 115/230 Volt
  • Altavoz
  • - Este modelo usa altavoz exterior (1 o más).
  • Potencia de salida
  • 80 W (120 W max.)
  • Material
  • Metálico
  • de Radiomuseum.org

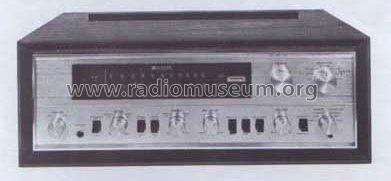

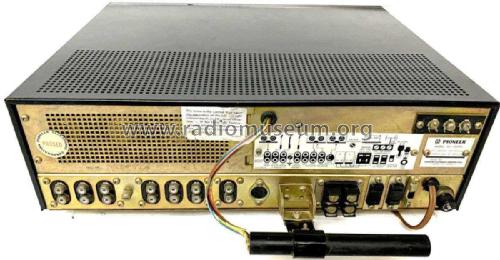

  • Modelo: Solid State AM/FM Multiplex Receiver SX-1000TA - Pioneer Corporation; Tokyo
  • Forma
  • Unidad para estanteria.
  • Ancho, altura, profundidad
  • 405 x 137 x 350 mm / 15.9 x 5.4 x 13.8 inch
  • Anotaciones

  • A stereo hi-fi receiver with an analogue dial housed in a metal case (outer wooden cabinet optional), with an AM/FM stereo tuner and an integrated amplifier with 2 x 40 watts RMS output power into 8 ohms or 2 x 50 watts RMS output power into 4 ohms, THD 0.5% (8 ohms).

    HiFi-Stereo-AM/FM-Receiver mit 2x50 Watt Sinus an 4 Ohm.
    Außengehäuse wahlweise in Holz.

    Specification
    FM Section
    Frequency Range 87-108MHz
    IHF Usable Sensitivity 2.2µv
    Image Rejection 55db
    Signal to Noise Ratio 60db
    Antenna Input 300Ω (balanced)
    Channel Separation 38db (at 1000Hz)
    AM Section
    Frequency Range 525-1605kHz
    IHF Usable Sensitivity 18µv
    Antenna Input Built in Ferrite loopstick antenna
     with terminal for external antenna
    Audio Section
    Music Power Output 90 watts total into 8Ω (IHF)
    120 Watts into 4Ω
    RMS Rated Power Output 40 watts per channel into 8Ω 0.5% HD
    50 Watts per channel into 4Ω
    Harmonic Distortion 0.5% (at 1kHz at rated output)
    Frequency Response 20-60,000Hz
    Power Bandwidth 15-40,000Hz (IHF)
    Damping Factor 30 (8Ω load)
    Inputs
    Sensitivity/Impedance (for rated output)
    MAGnetic PHONO
    CERamic PHONO
    TAPE HEAD
    TAPE MONITOR
    AUXiliary    		 2.5mv / 50kΩ (1kHz)
    55mv  / 90kΩ (1kHz)
    1.5mv / 120kΩ (1kHz)
    200mv / 200kΩ (1kHz)
    200mv / 200kΩ (1kHz)
    Outputs
    Terminals and Jacks



         		 Speakers: 8-16Ω
    Stereo headphone jack
    Simultaneous tape Recording jacks
     equipped with TAPE MONITOR switch
    Tape recording/playback jack (DIN)
    Equalization Curve PHONO: RIAA, TAPE: NAB

    Versions/Power requirements
    General Export  /  115V/230V AC 50/60Hz with voltage selector

    Power consumption: 175 watts max.
    Valves/Semiconductors:  3 valves, 43 Transistors, 34 Diodes, 1 Zener Diode

  • Peso neto
  • 11.5 kg / 25 lb 5.3 oz (25.33 lb)
  • Procedencia de los datos
  • -- Original prospect or advert
