Translitor Super Seven

Translitor Super Seven ; Pizon Bros JMP; (ID = 1681683) Radio Translitor Super Seven ; Pizon Bros JMP; (ID = 1681684) Radio
Translitor Super Seven ; Pizon Bros JMP; (ID = 2340387) Radio Translitor Super Seven ; Pizon Bros JMP; (ID = 2340386) Radio
Translitor Super Seven ; Pizon Bros JMP; (ID = 2340388) Radio Translitor Super Seven ; Pizon Bros JMP; (ID = 543090) Radio
Translitor Super Seven ; Pizon Bros JMP; (ID = 631503) Radio Translitor Super Seven ; Pizon Bros JMP; (ID = 2526167) Radio
Translitor Super Seven ; Pizon Bros JMP; (ID = 2526168) Radio
Use red slider bar for more.
Translitor Super Seven ; Pizon Bros JMP; (ID = 1681683) Radio
Pizon Bros JMP;: Translitor Super Seven [Radio] ID = 1681683 933x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model Translitor Super Seven, Pizon Bros (JMP); Paris:
Photo J.M

Country:  France
Manufacturer / Brand:  Pizon Bros (JMP); Paris
Year: 1961 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: RAY486 AF116 SFT307 SFT307 SFT351 SFT353 SFT125 SFT125
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Other, details in remarks or not known. / 9; 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Translitor Super Seven - Pizon Bros JMP; Paris
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 200 x 100 mm / 10.2 x 7.9 x 3.9 inch
Notes

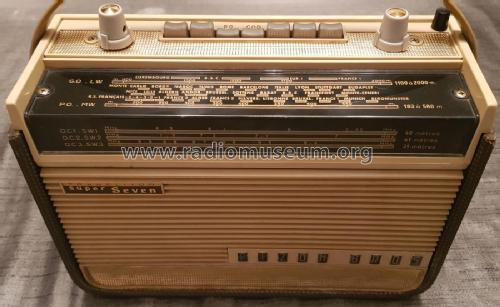

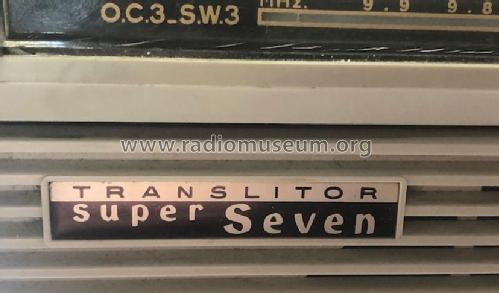

The Pizon Bros model "Translitor Super Seven" got its name written clearly on the model and might indicate the seven push-buttons in grey and not - as usual - the number of transistors. This means for us that we name it as it is named!
It has 10 semiconductors: 8 transistors plus two diodes. 7 transistors are located on the main PWB and there is a separate oscillator transistor located on the coil set. It is a RAY486 as equivalent to 2N486.

There are three SW bands (front scale): 49 m: ~5.95 - 6.2 MHz; 41 m: ~7 - 7.3 MHz; 31 m: ~9.4 - 9.9 MHz - plus "middle" and long waves on top scale. For the case colors we know gray, blue and red. Terminals on rear side.

The schematics of the Super Seven is exactly the same as the model 850, but the usable audio power is specified at 1W for the first and 1.4W for the second - according to the speaker data.

Model page created by Jaume Lorenzo-Felip. See "Data change" for further contributors.



All listed radios etc. from Pizon Bros (JMP); Paris
Here you find 73 models, 63 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
