• Country
• Germany

• Manufacturer / Brand
• Plisch; Hans H.; Viernheim, Hessen

• Year
• 1955 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 312141

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• EF80 ECH81 ECH81 EF89 EF89 EH900 EH900 EH900 EH900 DP7-12C EZ80 EY51 STV150/30

• Number of Transistors

• Semiconductors
• E250C50 E250C50 OA130 OA160

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

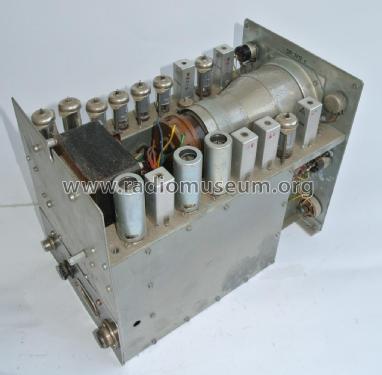

• Model: Sichtpanorama P 55 R - Plisch; Hans H.; Viernheim,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 190 x 250 x 335 mm / 7.5 x 9.8 x 13.2 inch

• Notes

• Dioden OA160 sind 9-mal vorhanden

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Author
• Model page created by Horst Willers. See "Data change" for further contributors.
