• Country
• Finland

• Manufacturer / Brand
• Pohjoismainen Sähkö-Osakeyhtiö,Helsinki

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 278976

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 EF22 EF22 EBL21 AZ1

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

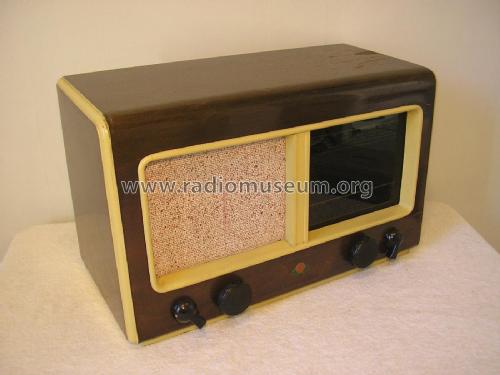

• Model: 568 W - Pohjoismainen Sähkö-Osakeyhtiö

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 318 x 245 mm / 20.5 x 12.5 x 9.6 inch

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.
