• Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 62663

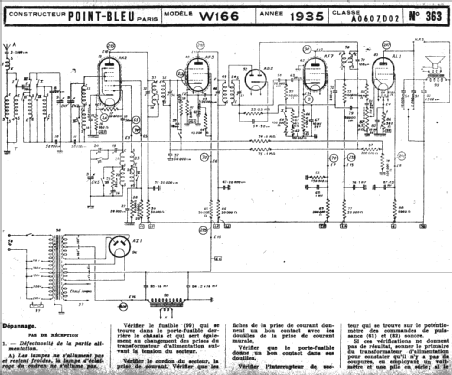

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • from Radiomuseum.org
  • Model: W166 - Point Bleu; Paris - voir aussi
  • External source of data
  • Serge Laffont/Martin Renoth
