Oscillatore Modulato E.P. 1

Unaohm Start, Ohm, E. Pontremoli; Milano

  • Year
  • 1937 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 315030

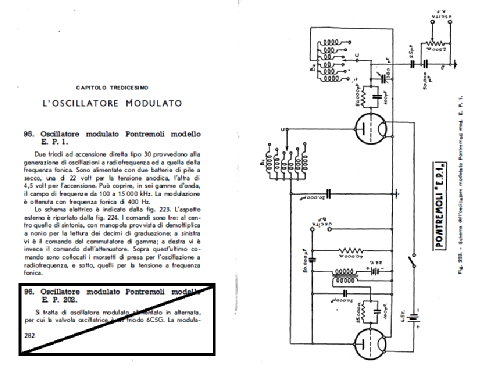

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Valves / Tubes
  • 30 30
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Dry Batteries / 4.5 & 22 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Oscillatore Modulato E.P. 1 - Unaohm Start, Ohm, E.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 250 x 170 x 120 mm / 9.8 x 6.7 x 4.7 inch
  • Notes
  • From 100 kHz to 15 MHz, modulated with audio 400 Hz.

  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • Ravalico-Servizio radiotecnico-Vol.1-1941
  • Author
  • Model page created by Angelo Vannini. See "Data change" for further contributors.
