P45
Use red slider bar for more.

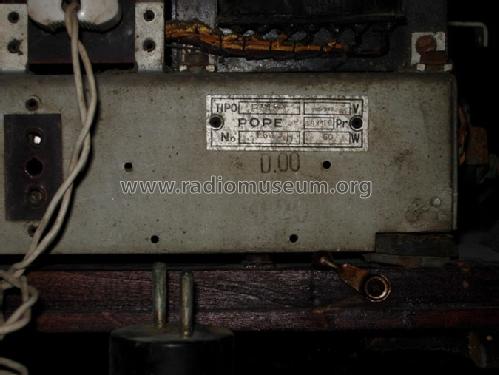

Pope Radio - S.I.P.A: P45 [Radio] ID = 1323590 765x574
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
SIPAR | ||||
|---|---|---|---|---|---|
| Year: 1940 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: EF8 ECH4 EF9 EBL1 EM1 AZ1 |
| Main principle | Superhet with RF-stage |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 140; 160; 170; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: P45 - Pope Radio - S.I.P.A.R. Milano |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
Model page created by Lorenzo Guadagnucci. See "Data change" for further contributors.
