• Country
• Italy

• Manufacturer / Brand
• Prandoni S.p.A., Dario; Treviglio

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 171698

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF164 AF165 AF166 AF166 AF166 AC141 AC138 AC142 AC141

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 X 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.2 W (unknown quality)

• from Radiomuseum.org

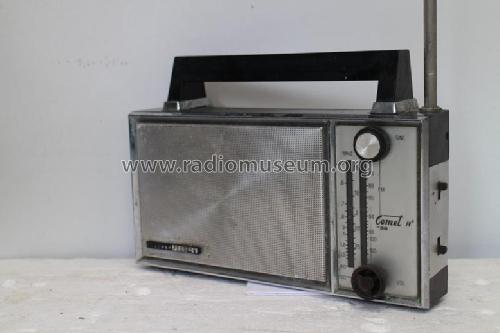

• Model: Comet IV° 36 PD236 - Prandoni S.p.A., Dario;

• Notes
• Gamma di ricezione:
  OM: 540 ÷ 1610 kHz.
  FM: 85 ÷ 105 MHz.

• Literature/Schematics (1)
• -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
