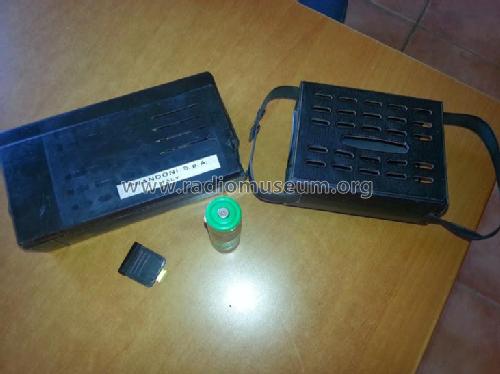

Eclypse 41 PD.241 (341)

Prandoni S.p.A., Dario; Treviglio

  • Year
  • 1966 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 172211

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 2R10: 2 x 3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Eclypse 41 PD.241 - Prandoni S.p.A., Dario;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 160 x 85 x 40 mm / 6.3 x 3.3 x 1.6 inch
  • Notes
  • Gamma d'onda:
    OM: 535 ÷ 1600 kHz.
  • Literature/Schematics (1)
  • -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
