• Year
  • 1966 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 172166

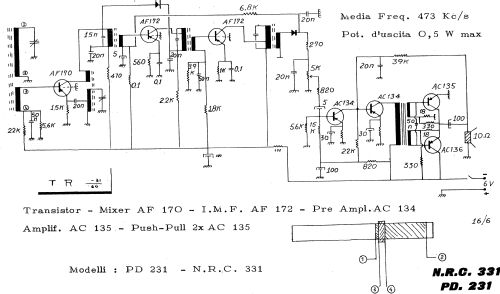

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 473 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Dry Batteries / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.5 W (unknown quality)
  • from Radiomuseum.org
  • Model: PD231 - Prandoni S.p.A., Dario;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Literature/Schematics (1)
  • -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
