• Country
• France

• Manufacturer / Brand
• Proclamor; Paris

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63132

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 ABC1 AL3 AZ1

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• from Radiomuseum.org

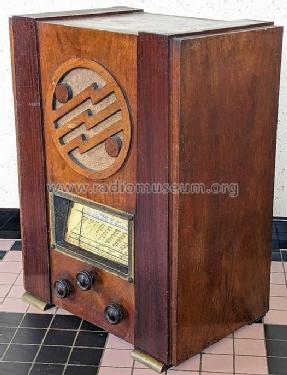

• Model: 52 - Proclamor; Paris

• External source of data
• Serge Laffont/Martin Renoth
