• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 191715

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EF41 ECH42 EF41 EBC41 EM34 EBC41 EL41 EL41 EZ40

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 90-150; 195-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org

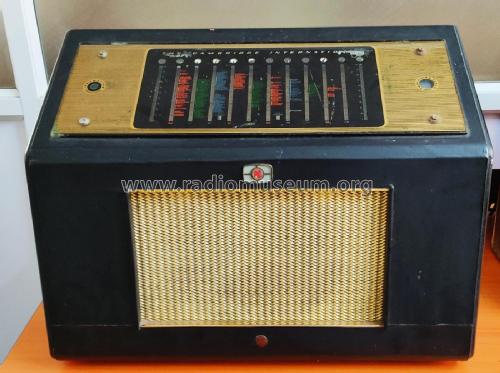

• Model: Cambridge International Model J Type PE80 - Pye Ltd., Radio Works;

• Shape
• Tablemodel, slant panel.

• Notes

• LW (optionally), MW and 9 SW bands

  First position on wavechange switch is Gram/P.U. input.

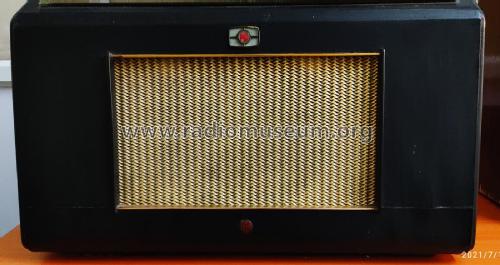

  This is an alias for the PE80. The Irish made version is identical apart from the external text (Dundrum replacing Cambridge). There are versions with or without LW. Early models have metal grill and later a gold colour speaker cloth. All have the same PE80 model plate.

  The service manual describes it as Model "J" Type PE80.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
