For model Cambridge International PE80, Pye Ltd., Radio Works; Cambridge

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EF41 ECH42 EF41 EBC41 EM34 EBC41 EL41 EL41 EZ40
Main principle Superhet with RF-stage; ZF/IF 470 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90-150; 195-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Cambridge International PE80 - Pye Ltd., Radio Works;
Material Wooden case

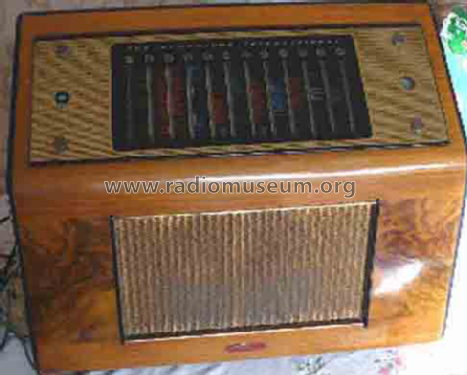

Shape Tablemodel, slant panel.
Dimensions (WHD) 23.5 x 17.5 x 10.5 inch / 597 x 445 x 267 mm
Notes

LW, MW, 9 x SW. Basically a Rimlock/B8A version of the 1950 PYE A39J/H or 39J/H in a different case with added Magic Eye (EM34) and of the 1949 or 1950 PYE 39JH/E (includes Magic Eye). The PE60  and H = PE60V are a similar design electronics in a stylish cabinet with similar scale and chassis but without Push pull audio.

The Irish made version has a metal grill and Dundrum on badge, scale and rear panel instead of Cambridge. The model plate is identical.

The UK versions have Metal or cloth grills. The cloth version is much higher serial number. The chassis model plates look identical on UK & Irish version. Confusingly the Model "J" Type  PE80 service manual explains there are versions with no LW (but still a PE80) and 12th position on wavechange blocked, so LW postion is Gram/P.U. A sample UK PE80 with cloth grill and an Irish Metal grill  PE80 appears to match Model "J" Type PE80 service manual. The "Model J" is an Alias for PE80.

The twin Wanderplug socket for PU/Gram is actually 'Crystal' and 'Magnetic' inputs with the common earth socket on the chassis. The internal speaker is plugged in to paralleled wander sockets beside the extension speaker sockets.

The earthy end of V1, V2 and V3 (RF valves) is disconnected leaving a common series 390 Ohms in Gram mode.

The main drive requires 1.8m of cord.
