• Country
• Australia

• Manufacturer / Brand
• Tecnico Electronics Pty Ltd Sydney

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 263919

• • Brand: Tecnico-Aristocrat, Tecnicorda, Pye-Tecnico

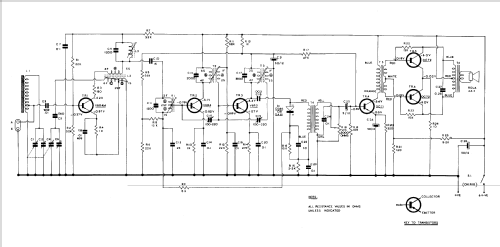

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• V6/R4M V6/R4 V6/R2 V10/50B or. OC71 V10/30A or. OC72 V10/30A or. OC72 OA81

• Main principle
• Superheterodyne (common); ZF/IF 325 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Pye Transistor Portable P123BQ - Tecnico Electronics Pty Ltd

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• PYE 123BQ Transistors Portable Radio

  Designed for use as an indoor cordless mantel or as a lightweight outdoor portable, the versitile PYE Transistor Portable give unparalleled "big radio" performance wherever you go. Utilising the modern printed circuit technique and incorporating the latest developments in radio engineering - including the revolutionary transistor - the PYE Transistor Portable is Australia's most advanced most reliable small radio. It is smartly styled in contempory Beige and luggage tan.

  The Pye P123BQ, along with AWA model 897P, would be a contender for one of the first Australian made transistor radio.

  This Australian made radio differs from the British made Pye P123BQ in not covering the long wave band. (Not used in Australia). Alternatives to the transistors listed are given in the service data.  However, it is not clear whether these were used in production or are listed for the benefit of service technicians looking for a substitute.

  An example has been sighted dated 1957 using G.E. transistors types 2N137, 2N138, 2N192 and 2N320, which are not listed as alternatives in the service manual but appear to be original.

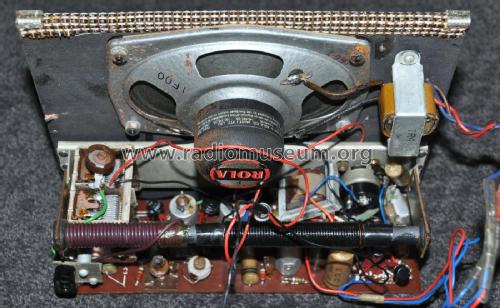

  • Speaker Rola Type 5-4F.
  • Batterie 4 x D cells
  • Price 1 guinea (£1/1/-) extra in WA.

• Price in first year of sale
• 44.10 AUS £

• Literature/Schematics (1)

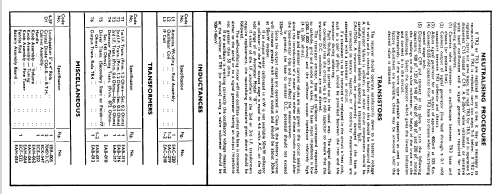

• - - Manufacturers Literature (Pye Service Sheet.)

• Literature/Schematics (2)
• J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960, Page P12.)

• Literature/Schematics (3)
• J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page P61.)

• Literature/Schematics (4)
• Mingay's Price Service (May 1958 & Nov 1958.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
