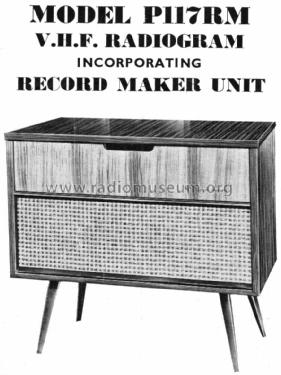

VHF Radiogram Record Maker P117RM

Pye Ltd., Radio Works; Cambridge

Data
Forum
Pictures
Collections

  • Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 224367

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: VHF Radiogram Record Maker P117RM - Pye Ltd., Radio Works;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

  • Musikschrank, Radio mit Plattenspieler.

    STC C3D selenium rectifier. Record Maker unit fitted. Garrard RC121/4H Mk II four speed autochanger supplied with two plug-in pickup heads, one for playback of records, the other for recording/playback on magnetic discs.

  • Source of data
  • -- Schematic
  • Mentioned in
  • - - Manufacturers Literature (PYE Service Sheet)
  • Author
  • Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
