PP/AC

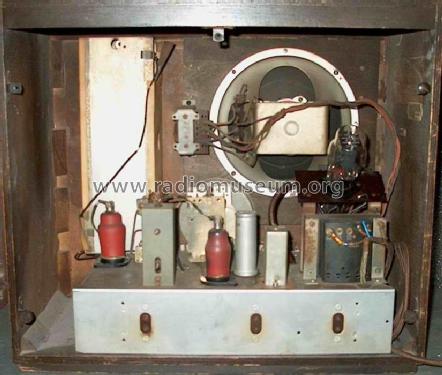

PP/AC ; Pye Ltd., Radio (ID = 546637) Radio PP/AC ; Pye Ltd., Radio (ID = 546638) Radio
PP/AC ; Pye Ltd., Radio (ID = 610345) Radio
Use red slider bar for more.
PP/AC ; Pye Ltd., Radio (ID = 546637) Radio
Pye Ltd., Radio: PP/AC [Radio] ID = 546637 832x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model PP/AC, Pye Ltd., Radio Works; Cambridge

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1939/1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 462 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20.5 cm = 8.1 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: PP/AC - Pye Ltd., Radio Works;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 475 x 420 x 255 mm / 18.7 x 16.5 x 10 inch
Notes 13 push-buttons (on/off-tone-bands)
Price in first year of sale 11.00 GBP
Mentioned in -- Original prospect or advert

Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
