• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 361251

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• EF41 ECH81 EF41 EBC41 EM34 EL84 EZ80

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Marquis PZ109 - Pye N.Z. Ltd.; Waihi

• Shape
• Tablemodel, low profile (big size).

• Notes

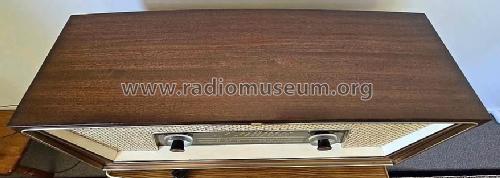

• PYE PZ109 Marquis

  7-valve (including magic eye), 5-band superhet with RF stage.

  Service notes indicate this model shared the same, or similar chassis with PYE PZ92 and PYE PZ202.
