• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 343744

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EZ40

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: PZ95TG - Pye N.Z. Ltd.; Waihi

• Shape
• Tablemodel, with any shape - general.

• Notes

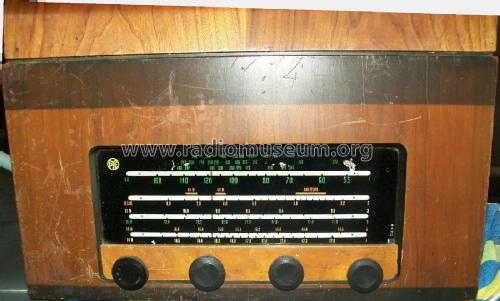

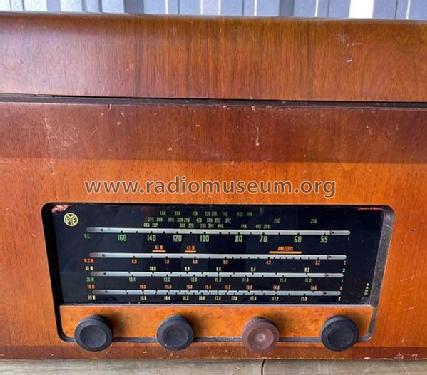

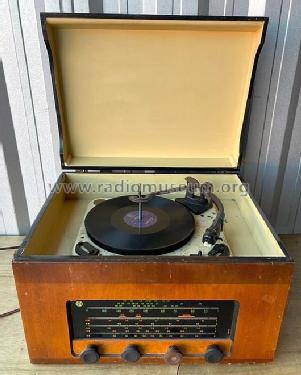

• 5-Valve superhet 6 band bandspread table radiogram with twin 6" PM speakers and Garrard RC110 3 speed automatic record changer.

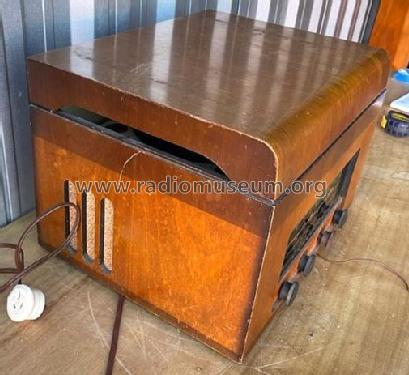

  Polished walnut cabinet is unique in that the back is veneered so the radiogram can be used in a mid room position where reproduction from the twin speakers is best.

  Manufactured by the Akrad Radio Corporation Ltd for G A Wooler & Co Ltd.

• Price in first year of sale
• 58.50 NZ £

• Mentioned in
• -- Original prospect or advert (Press 15 June 1955 Page 16)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
