• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110247

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCC85 UCH81 UBF89 UCL82 UY82

• Number of Transistors

• Semiconductors
• OA646 OA646

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org

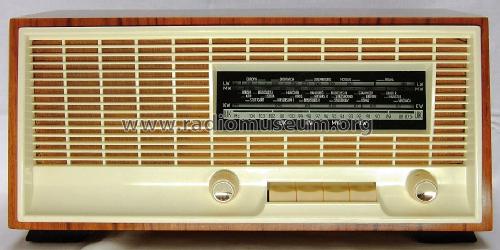

• Model: Simonetta-4-Wellen-Super AF642 Art. Nr. 07576 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 345 x 169 x 165 mm / 13.6 x 6.7 x 6.5 inch

• Notes

• Hergestellt von Stern-Radio Sonneberg/RFT. Ähnlich Binette 523, Jalta 5060, Rundfunkgerät 5071 usw.

  ---

  Manufactured in the former DDR by Stern-Radio Sonneberg/RFT for the Quelle mail order company. Very similar to the Binette 523, Jalta 5060, Rundfunkgerät 5071 etc.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.
