• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 190427

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA201 2SA202 2SA203 2SB186 2SB187 2SB187

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Universum-MW-Radio-Wecker CTR66 Best. Nr. 01345 - QUELLE GmbH Universum; Fürth

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 165 x 82 x 42 mm / 6.5 x 3.2 x 1.7 inch

• Notes

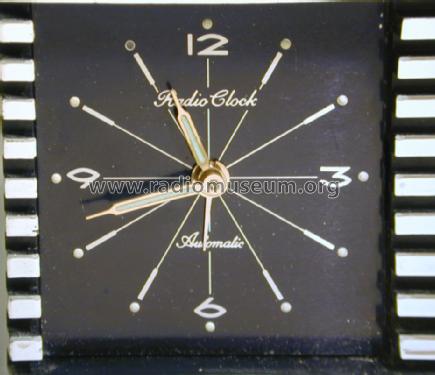

• MW-Radio-Wecker mit Zeigeruhr.

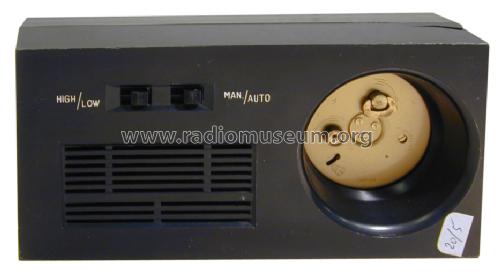

  Hi/Low Auto switch , Made in Japan.
  Gemeinsam mit Swing Electroimpex GmbH, Frankfurt eingekauft, diese durfte jedoch keinen Markennamen (Brand) erscheinen lassen. Clock movement by Japan Rhythm.

• Net weight (2.2 lb = 1 kg)
• 0.320 kg / 0 lb 11.3 oz (0.705 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
