Simonetta BT 62 UMK Art. Nr. 08528

Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 637940) Radio
Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 298935) Radio Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 635084) Radio
Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 635080) Radio Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 298936) Radio
Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 239490) Radio Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 635078) Radio
Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 635087) Radio Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 635088) Radio
Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 635089) Radio
Use red slider bar for more.
Simonetta BT 62 UMK Art. Nr. 08528; QUELLE GmbH (ID = 298935) Radio
QUELLE GmbH: Simonetta BT 62 UMK Art. Nr. 08528 [Radio] ID = 298935 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Simonetta BT 62 UMK Art. Nr. 08528, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC171 OC171 AF105 or. OC170 AF105 or. OC170 AF105 or. OC170 OC71 OC75 OC74 OC74 OA160 OA172 OA172
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Simonetta BT 62 UMK Art. Nr. 08528 - QUELLE GmbH Universum; Fürth
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 180 x 85 mm / 11 x 7.1 x 3.3 inch
Notes

Hersteller Tonfunk.

Price in first year of sale 169.00 DM
Mentioned in -- Original prospect or advert (Auszug Quelle Katalog mit Preisangabe)

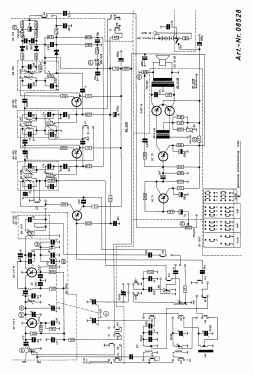

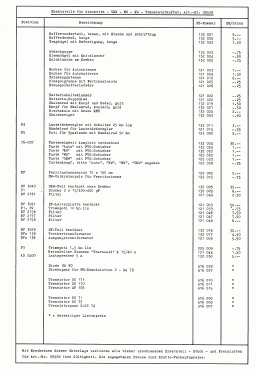

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Ilja Liebisch. See "Data change" for further contributors.
