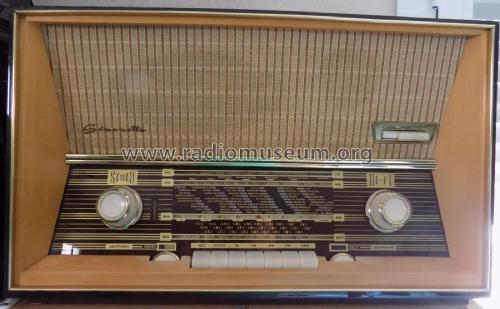

Simonetta-Stereo-Luxus W314 Art. Nr. 07564
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 155894
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Simonetta-Stereo-Luxus W314 Art. Nr. 07564 - QUELLE GmbH Universum; Fürth
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 580 x 345 x 235 mm / 22.8 x 13.6 x 9.3 inch
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Thomas Günzel † 1.8.22. See "Data change" for further contributors.
