Modulation Meter 409

Modulation Meter 409; Racal Engineering (ID = 1042445) Equipment Modulation Meter 409; Racal Engineering (ID = 1042441) Equipment
Modulation Meter 409; Racal Engineering (ID = 1042442) Equipment Modulation Meter 409; Racal Engineering (ID = 1042443) Equipment
Modulation Meter 409; Racal Engineering (ID = 1042444) Equipment Modulation Meter 409; Racal Engineering (ID = 1042446) Equipment
Modulation Meter 409; Racal Engineering (ID = 1042447) Equipment Modulation Meter 409; Racal Engineering (ID = 1042448) Equipment
Modulation Meter 409; Racal Engineering (ID = 1042449) Equipment Modulation Meter 409; Racal Engineering (ID = 1042450) Equipment
Use red slider bar for more.
Modulation Meter 409; Racal Engineering (ID = 1042445) Equipment

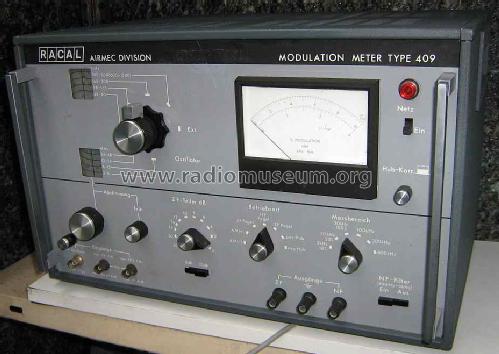

Racal Engineering: Modulation Meter 409 [Equipment] ID = 1042445 799x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model Modulation Meter 409, Racal Engineering (Racal Instruments) Ltd., Bracknell:
Ebay user hotbottle-radio 150644356036

Country:  Great Britain (UK)
Manufacturer / Brand:  Racal Engineering (Racal Instruments) Ltd., Bracknell
Year: 1965 ?? Category: Service- or Lab Equipment
Valves / Tubes 16: EC1000 E180F E180F E180F 12AT7 or CV455 6AL5 or CV140 12AT7 or CV455 6AL5 or CV140 6AM6 or CV138 6AM6 or CV138 6BR7 or CV2135 6U8 EL86 EL86 6AM6 or CV138 CV286 unknown_Tube
Semiconductors (the count is only for transistors) 9: OC35 BFY90 OA91 OA91 BA110 BZY88
schematic requested
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 100-130; 200-250 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Modulation Meter 409 - Racal Engineering Racal
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 431 x 321 x 279 mm / 17 x 12.6 x 11 inch
Notes Racal Instruments Modulation Meter 409;
FM: 3 - 1.500 MHz, 6 deviation ranges, AM: 3 - 1.200 MHz, 8 band oscillator up to 600 MHz, 120 VA.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Mentioned in -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.
