• Country
• France

• Manufacturer / Brand
• Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 283642

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC81 UL84 DM70

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• AC/DC-set / 110-130; 220-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

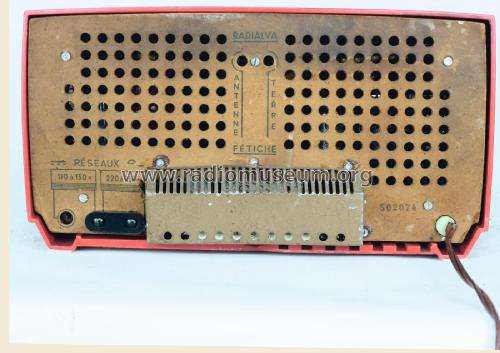

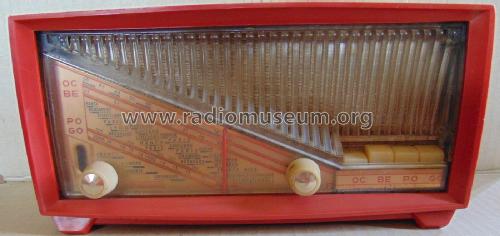

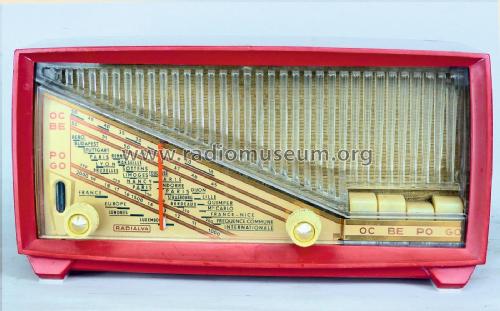

• Model: Fétiche [avec oeil magique] - Radialva, Véchambre Frères;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 275 x 145 x 95 mm / 10.8 x 5.7 x 3.7 inch

• Notes

• 4 gammes d'ondes dont 1 bande étalée (BE) sur OC. Cadre ferrite de 200 mm et antenne OC-BE incorporés. HP elliptique de 10 x 14 cm.

  Coffret polystyrène, teintes ivoire, vert, gris, rouge ou bordeaux.

  Ce modèle existe aussi en variante sans oeil magique.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
