• Year
  • 1932/1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 71179

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

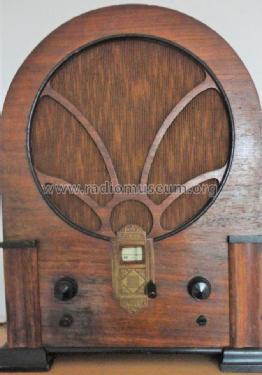

  • Model: Picoleta - Radio Havel, Praha
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Dimensions (WHD)
  • 405 x 505 x 190 mm / 15.9 x 19.9 x 7.5 inch
  • Notes
  • Works well with E424N E424N B406 506. Set may be original, however, this is not confirmed.
  • Price in first year of sale
  • 1,450.00 Kc
  • Literature/Schematics (1)
  • -- Schematic
