Scheepsradiotelefoon Capella HB110RT

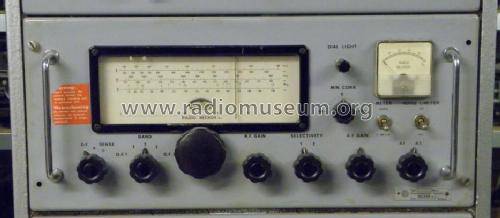

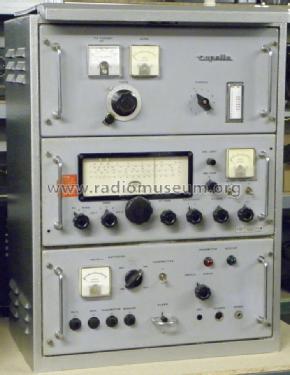

Scheepsradiotelefoon Capella HB110RT; Radio Becker N. V.; (ID = 1167361) TRX Scheepsradiotelefoon Capella HB110RT; Radio Becker N. V.; (ID = 1167362) TRX

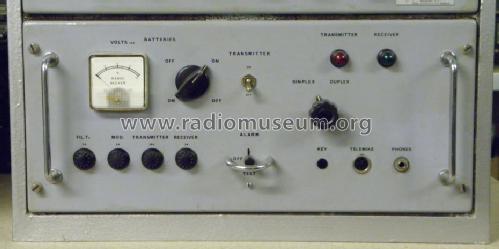

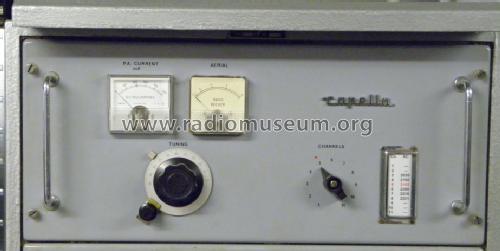

Scheepsradiotelefoon Capella HB110RT; Radio Becker N. V.; (ID = 1167363) TRX Scheepsradiotelefoon Capella HB110RT; Radio Becker N. V.; (ID = 1167364) TRX
Use red slider bar for more.
Scheepsradiotelefoon Capella HB110RT; Radio Becker N. V.; (ID = 1167361) TRX
Radio Becker N. V.;: Scheepsradiotelefoon Capella HB110RT [TRX] ID = 1167361 745x963
Select picture or schematic to display from thumbnails on the right and click for download.
For model Scheepsradiotelefoon Capella HB110RT, Radio Becker N. V.; Zeist

Country:  Netherlands
Manufacturer / Brand:  Radio Becker N. V.; Zeist
Year: 1960 Category: Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 6: EF97 EL803 EL803 EL86 6146 6146
Semiconductors (the count is only for transistors) 28:
Main principle Transceiver; ZF/IF 550 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 24 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Scheepsradiotelefoon Capella HB110RT - Radio Becker N. V.; Zeist
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Notes Marine radio transceiver. Transmitter 11 channels (plug-in crystals) in the frequency range of 1,6 - 4,2 MHz, type of emission A3, rf-output 70 W. Receiver frequency ranges 150 kHz - 510 kHz, 550 kHz - 1700 kHz, 1,5 - 4,1 MHz.
Mentioned in - - Manufacturers Literature

Model page created by Siegfried Droese. See "Data change" for further contributors.
