Radiobell 200S

Radiobell 200S; Bell Telephone Mfg. (ID = 1416706) Radio

Radiobell 200S; Bell Telephone Mfg. (ID = 1416707) Radio

Radiobell 200S; Bell Telephone Mfg. (ID = 1416708) Radio

Radiobell 200S; Bell Telephone Mfg. (ID = 1416709) Radio

Radiobell 200S; Bell Telephone Mfg. (ID = 1416711) Radio
Radiobell 200S; Bell Telephone Mfg. (ID = 2294968) Radio Radiobell 200S; Bell Telephone Mfg. (ID = 89244) Radio
Radiobell 200S; Bell Telephone Mfg. (ID = 1782839) Radio Radiobell 200S; Bell Telephone Mfg. (ID = 89247) Radio
Radiobell 200S; Bell Telephone Mfg. (ID = 89249) Radio Radiobell 200S; Bell Telephone Mfg. (ID = 277898) Radio
Radiobell 200S; Bell Telephone Mfg. (ID = 277946) Radio
Use red slider bar for more.

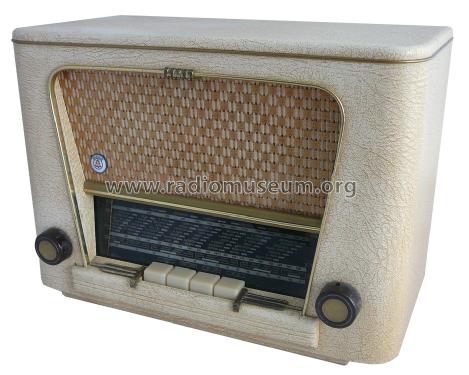

Radiobell 200S; Bell Telephone Mfg. (ID = 2294968) Radio
Bell Telephone Mfg.: Radiobell 200S [Radio] ID = 2294968 1400x1118
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiobell 200S, Bell Telephone Mfg. Co. (Radiobell); Antwerp

Country:  Belgium
Manufacturer / Brand:  Bell Telephone Mfg. Co. (Radiobell); Antwerp
Brand

Radiobell
Year: 1957/1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UAF42 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Radiobell 200S - Bell Telephone Mfg. Co.
Material Leather / canvas / plastic - over other material
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 340 x 240 x 180 mm / 13.4 x 9.4 x 7.1 inch

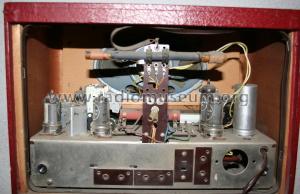

Notes See also Sancy RB200.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

Model page created by Walter Van Brussel. See "Data change" for further contributors.



All listed radios etc. from Bell Telephone Mfg. Co. (Radiobell); Antwerp
Here you find 273 models, 236 with images and 109 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
