Mon ami 149 Scrigno

Mon ami 149; Fortuna Radio; (ID = 1653730) Radio
Mon ami 149; Fortuna Radio; (ID = 2032693) Radio Mon ami 149; Fortuna Radio; (ID = 671717) Radio
Mon ami 149; Fortuna Radio; (ID = 671716) Radio Mon ami 149; Fortuna Radio; (ID = 671704) Radio
Mon ami 149; Fortuna Radio; (ID = 1226766) Radio Mon ami 149; Fortuna Radio; (ID = 1609539) Radio
Mon ami 149; Fortuna Radio; (ID = 1609541) Radio Mon ami 149; Fortuna Radio; (ID = 1621048) Radio
Mon ami 149; Fortuna Radio; (ID = 1621049) Radio Mon ami 149; Fortuna Radio; (ID = 1621050) Radio
Use red slider bar for more.
Mon ami 149; Fortuna Radio; (ID = 2032693) Radio
Fortuna Radio;: Mon ami 149 [Radio] ID = 2032693 681x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mon ami 149 Scrigno, Fortuna Radio; Milano

Country:  Italy
Manufacturer / Brand:  Fortuna Radio; Milano
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH41 UAF42 UAF42 UL41 UY41
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Mon ami 149 [Scrigno] - Fortuna Radio; Milano
Material Various materials
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 300 x 190 x 130 mm / 11.8 x 7.5 x 5.1 inch

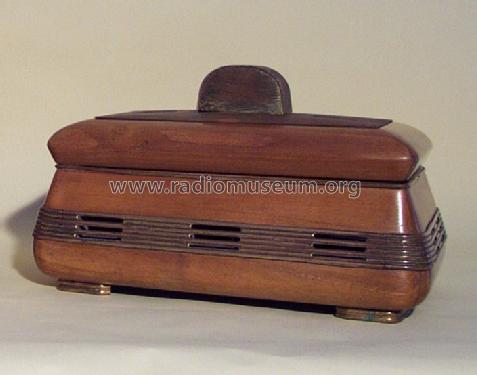

Notes Questo modello, denominato SCRIGNO, veniva prodotto con mobiletto in acero, noce e palissandro. Una versione aveva la forma a BAULETTO ed era rivestito in pelle.
Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Price in first year of sale 37'000.00 ITL
Source of data Guida Pratica Antique Radio III (2000)

Model page created by Antonio Maida. See "Data change" for further contributors.



All listed radios etc. from Fortuna Radio; Milano
Here you find 3 models, 2 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
