- Country
- Spain
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Spain
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 281306

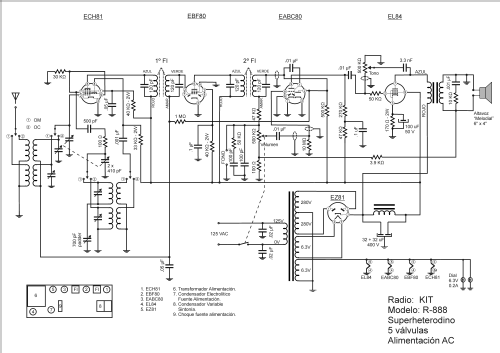

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 475 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R-888 - Unknown - CUSTOM BUILT: Spain
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 435 x 245 x 185 mm / 17.1 x 9.6 x 7.3 inch
- Notes
-
Altavoz formato elíptico de 6" x 4"
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Author
- Model page created by Mario Berta. See "Data change" for further contributors.
