Ramar - Superheterodino 5 válvulas AC
Unknown - CUSTOM BUILT: Spain
- Country
- Spain
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Spain
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 212107

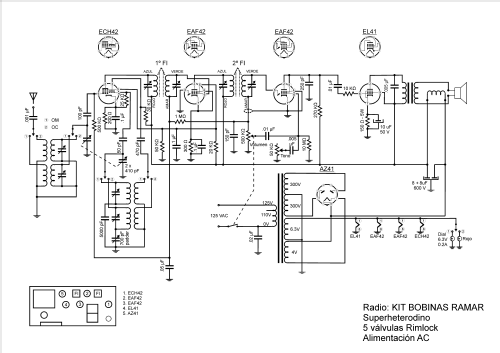

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 490 kHz; 2 AF stage(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ramar - Superheterodino 5 válvulas AC - Unknown - CUSTOM BUILT: Spain
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 350 x 235 x 190 mm / 13.8 x 9.3 x 7.5 inch
- Notes
- Utiliza bobinas marca Ramar Sideral.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Author
- Model page created by Mario Berta. See "Data change" for further contributors.
