• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74902

• • Brand: SFER

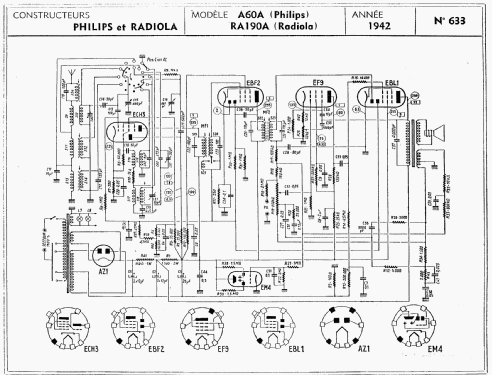

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH3 EBF2 EF9 EBL1 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: RA190A - Radiola marque

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 515 x 385 x 210 mm / 20.3 x 15.2 x 8.3 inch

• Notes

• HP type FK803.67.

  Équivalent au Philips A60A.

• Mentioned in
• Schémathèque Toute la Radio (STR) (No. 633)

• Author
• Model page created by Claude Weeber † 27.5.2010. See "Data change" for further contributors.
