RA20U

RA20U; Radiola marque (ID = 2040162) Radio

RA20U; Radiola marque (ID = 2040163) Radio
RA20U; Radiola marque (ID = 2038153) Radio RA20U; Radiola marque (ID = 2038156) Radio
RA20U; Radiola marque (ID = 2038154) Radio RA20U; Radiola marque (ID = 2038155) Radio
RA20U; Radiola marque (ID = 1245001) Radio RA20U; Radiola marque (ID = 1245003) Radio
RA20U; Radiola marque (ID = 1245004) Radio RA20U; Radiola marque (ID = 1245005) Radio
RA20U; Radiola marque (ID = 2116852) Radio RA20U; Radiola marque (ID = 2116853) Radio
Use red slider bar for more.
RA20U; Radiola marque (ID = 2038153) Radio
Radiola marque: RA20U [Radio] ID = 2038153 1400x1210
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA20U, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner

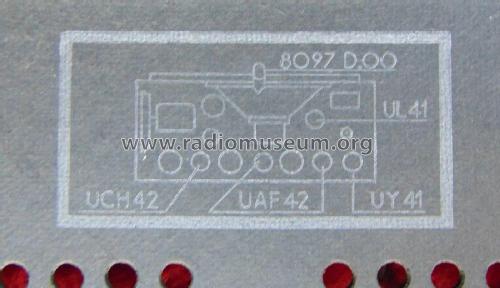

Valves / Tubes 5: UCH42 UAF42 UAF42 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: RA20U - Radiola marque
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 290 x 210 x 150 mm / 11.4 x 8.3 x 5.9 inch
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Source of data -- Collector info (Sammler)

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 824 models, 519 with images and 268 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
