RA30A

RA30A; Radiola marque (ID = 316304) Radio RA30A; Radiola marque (ID = 316310) Radio
RA30A; Radiola marque (ID = 316309) Radio RA30A; Radiola marque (ID = 316305) Radio
RA30A; Radiola marque (ID = 316306) Radio RA30A; Radiola marque (ID = 316307) Radio
RA30A; Radiola marque (ID = 316308) Radio RA30A; Radiola marque (ID = 434131) Radio
RA30A; Radiola marque (ID = 991329) Radio RA30A; Radiola marque (ID = 991330) Radio
Use red slider bar for more.
RA30A; Radiola marque (ID = 316304) Radio
Radiola marque: RA30A [Radio] ID = 316304 800x593
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA30A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt

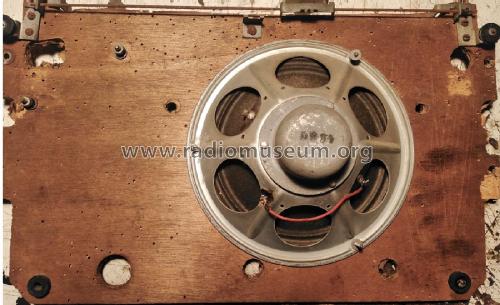

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: RA30A - Radiola marque
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 265 x 198 mm / 15.7 x 10.4 x 7.8 inch
Notes

3 gammes d'ondes : OC de 16 à 51 m, OM (PO) de 185 à 575 m, OL (GO) de 1150 à 2000 m. Correcteur de tonalité. Prise pick-up.

Coffret bakélite marbrée rouge brun, grille décorative ivoire ou dorée.

Prix pour exécution 50 périodes. Modèle pour 25 périodes pour 19.400 Fr.

Équivalent au Philips BF301A.

Le catalogue du gamme 1951 mentionne lampe UAF42 au lieu de UBC41.

Net weight (2.2 lb = 1 kg) 6.3 kg / 13 lb 14 oz (13.877 lb)
Price in first year of sale 18'900.00 FRF
Mentioned in -- Original prospect or advert (Catalogue 1950-1951)
Literature/Schematics (1) - - Manufacturers Literature (Prix courant, 26.09.1950)

Model page created by John Koster. See "Data change" for further contributors.
