RA347A

RA347A; Radiola marque (ID = 380735) Radio
Use red slider bar for more.
RA347A; Radiola marque (ID = 380735) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH81 UF41 UBC41 UL41 DM71 UY42
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

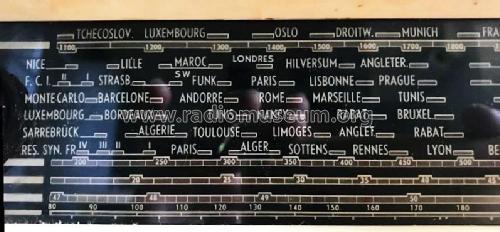

Wave bands Broadcast, Long Wave and 2 x Short Wave.

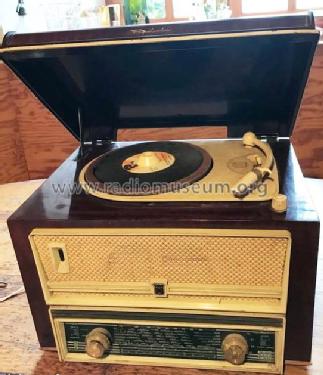

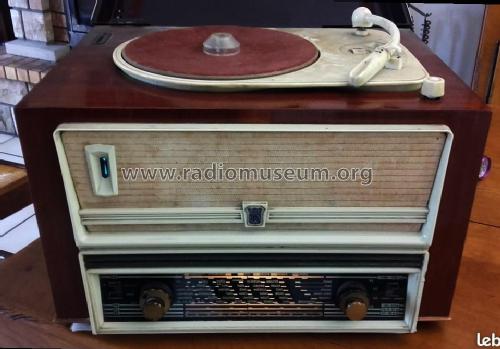

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RA347A - Radiola marque
Literature/Schematics (1) -- Schematic

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
