RA364A

• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102015

• • Brand: SFER

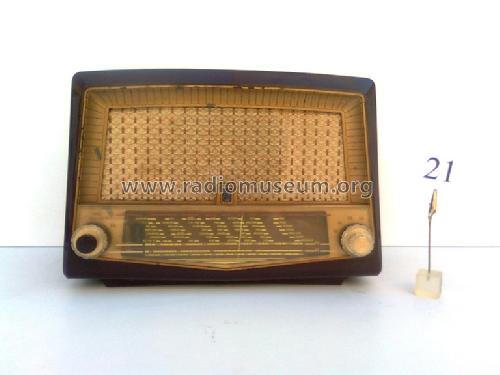

• Picture

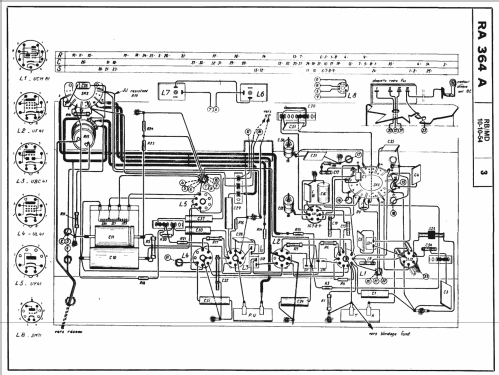

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH81 UF41 UBC41 UL41 DM71 UY41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RA364A - Radiola marque

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 350 x 250 x 170 mm / 13.8 x 9.8 x 6.7 inch

• Notes

• 4 gammes d'ondes: OC 16 à 51 m, BE 47 à 50,5 m, PO 185 à 572 m, GO 1100 à 1950 m. Commande du cadre Ferroceptor sur le dos. 2 lampes cadran 8034/00 (10 V, 0,2 A).

  Possibilité d'adjoncter un adaptateur chalutier (80 à 200 m).

  Coffret en matière plastique, couleurs bordeaux ou ivoire.

  Équivalent au Philips BF341A.

• Net weight (2.2 lb = 1 kg)
• 5.450 kg / 12 lb 0.1 oz (12.004 lb)

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (2)
• Le grand livre de la TSF (Doctsf Ref 2838)

• Author
• Model page created by John Koster. See "Data change" for further contributors.
