For model RA389T, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA79 OA85
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details

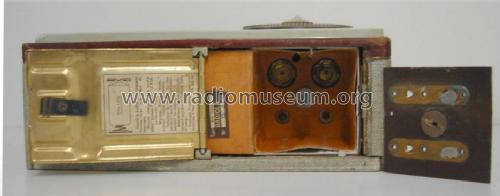

Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 inch = 33 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: RA389T - Radiola marque
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 185 x 100 mm / 10.2 x 7.3 x 3.9 inch
Notes

Récepteur portatif, 2 gammes d'ondes PO 185 à 575 m et GO 1150 à 1960 m. Cadre ferrocapteur fixe de 20 cm de long. Clavier 4 touches. Haut-parleur type 13R120/58V, impédance 5 ohms. Prise antenne extérieure.

Coffret bois gainé, exécutions: rouge ou gris. Poignée escamotable, grille métal peint.

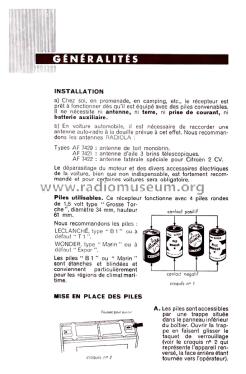

Pour la disposition des éléments, réglage, contrôle, etc. voir la documentation du modèle RA316T (A noter: la documentation a une erreur, il réfère au modèle ci-décrit).

Équivalent au Philips L3F83T.

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Mentioned in -- Original-techn. papers.

Model page created by Patrice Zeissloff. See "Data change" for further contributors.
