Record RA424V PO+GO

Radiola (marque)

  • Year
  • 1957
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 102025
    • Brand: SFER

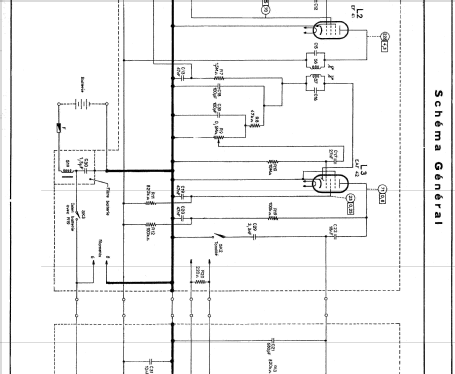

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Record RA424V [PO+GO] - Radiola marque
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 178 x 53 x 189 mm / 7 x 2.1 x 7.4 inch
  • Notes
  • 2 gammes d'ondes : PO de 186 à 584 m, GO de 1153 à 2000 m. Réglage de tonalité à 2 positions. Présentation monobloc, hauteur 53 mm (façade) à 80 mm (dos).

    Puissance de sortie (400 Hz) : 1,2 W sur 6 V (1,6 sur 7,2 V), D = 10%

    Équivalent au Philips NF344V (année 1955).

  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Price in first year of sale
  • 23,400.00 FRF
  • Mentioned in
  • - - Manufacturers Literature (Tarif Janvier 1957)
  • Literature/Schematics (1)

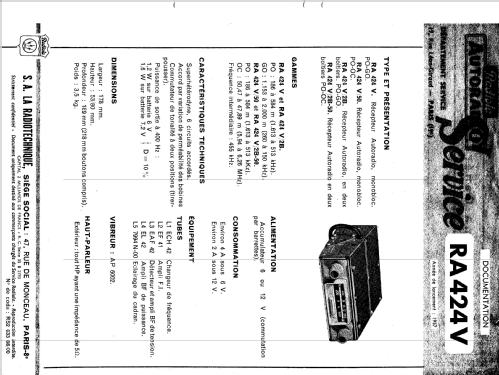

  • -- Original-techn. papers. (Lancement 1957)
  • Literature/Schematics (2)
  • -- Original prospect or advert
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
