RA478A

RA478A; Radiola marque (ID = 241757) Radio RA478A; Radiola marque (ID = 241756) Radio
Use red slider bar for more.
RA478A; Radiola marque (ID = 241757) Radio

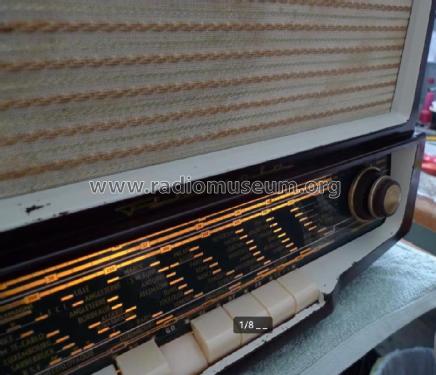

Radiola marque: RA478A [Radio] ID = 241757 368x268
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA478A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH81 EBF80 EBC81 EL84 EM81 UL84 EZ80
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: RA478A - Radiola marque
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 430 x 310 x 190 mm / 16.9 x 12.2 x 7.5 inch
Notes 5 Bands. Colours: bordeaux or dark grey.
Source of data -- Collector info (Sammler)

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 824 models, 519 with images and 267 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
