RA533U

RA533U; Radiola marque (ID = 644193) Radio

RA533U; Radiola marque (ID = 644203) Radio

RA533U; Radiola marque (ID = 644204) Radio

RA533U; Radiola marque (ID = 644206) Radio

RA533U; Radiola marque (ID = 1063061) Radio
RA533U; Radiola marque (ID = 287803) Radio RA533U; Radiola marque (ID = 977367) Radio
RA533U; Radiola marque (ID = 1058189) Radio
Use red slider bar for more.
RA533U; Radiola marque (ID = 287803) Radio
Radiola marque: RA533U [Radio] ID = 287803 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA533U, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner

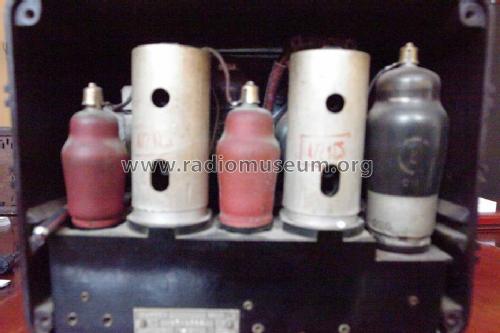

Valves / Tubes 4: ECH3 ECF1 CBL1 CY2
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 130 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: RA533U - Radiola marque
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

3 gammes d'ondes : OC de 16 à 51 m, PO de 195 à 575 m, GO de 1000 à 2000 m.

Équivalent au Philips A443U.

L'année 1945 mentionnée dans la Schémathèque est probablement erronée. Année de lancement du modèle Philips : 1947

Literature/Schematics (1) Schémathèque Toute la Radio (STR) (No. 637)

Model page created by John Koster. See "Data change" for further contributors.
