RA549A

RA549A; Radiola marque (ID = 2432311) Radio RA549A; Radiola marque (ID = 2432316) Radio
RA549A; Radiola marque (ID = 2432314) Radio RA549A; Radiola marque (ID = 2432315) Radio
RA549A; Radiola marque (ID = 1970330) Radio RA549A; Radiola marque (ID = 517245) Radio
RA549A; Radiola marque (ID = 435330) Radio RA549A; Radiola marque (ID = 516999) Radio
RA549A; Radiola marque (ID = 435328) Radio RA549A; Radiola marque (ID = 435329) Radio
Use red slider bar for more.
RA549A; Radiola marque (ID = 2432311) Radio
Radiola marque: RA549A [Radio] ID = 2432311 1019x1038
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA549A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: TF2 or AF2 TF2 or AF2 TB1 or AB1 TE46 or E446 TE63 or E463 V80 or 506
Main principle TRF without regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RA549A - Radiola marque
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 380 x 470 x 210 mm / 15 x 18.5 x 8.3 inch
Notes Superinductance. Loudspeaker 4283.
Mentioned in -- Original prospect or advert

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 824 models, 519 with images and 267 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Radiola marque: RA549A
Threads: 2 | Posts: 5
Hits: 267     Replies: 2
radiola: Radiola 549A restoration - tips wanted on first steps
William Smith
29.Aug.20
  1

Dear members,

I have just joined radiomuseum.org and would like your advice getting started with the restoration of a Radiola 549A radio I bought recently.

First, I think it is identical (except for the grill) to the Philips 638 A, which is no surprise given the historical links between the Radiola and Philips companies. Is it safe then to assume it is OK to use 638 information such as the schematic posted for the Philips 638 here.

I do hope so because I found a detailed step by step restoration of the 638 described here (in French) which would be very useful.

Second, I plan to replace the capacitors. I can see their microfarad (and micromicrofarad) values in the schematic. But it's not clear to me what voltage rating they should be. A valve amp I built from a kit recently has capacitors with voltages ranging from 25V to 450V, so I am aware I need to be careful about this.

Lastly (for now) I can see one of the valves is broken as bits are rattling inside it. It's a E463 penthode, this one here.

I guess I can replace it with any of the ones marked as identical, right? Do you have any tips about buying valves? Like new versus used, ebay or known dealers or anything else?

Looking forward to your help

Best regards,

Will





Gidi Verheijen
30.Aug.20
  2

Dear Will,

Model Radiola 549A uses the Philips 638A chassis, so for repair purposes you may use the documentation of the Philips 638A.

See table of equivalent Radiola and Philips types for the early years:

By the way, your link to the French site with the step by step restoration description does not work. You should end the link with html in stead of htm.

Regards,

Gidi



William Smith
30.Aug.20
  3

Dear Gidi,

Thank you for the information about the Philips 638A chassis and pointing out the non-working link which I have now corrected.

Regards,

Will


Hits: 327     Replies: 1
radiola: RA549A Skala Ausführung als Steckkarte
Manfred Rathgeb
02.Apr.20
  1

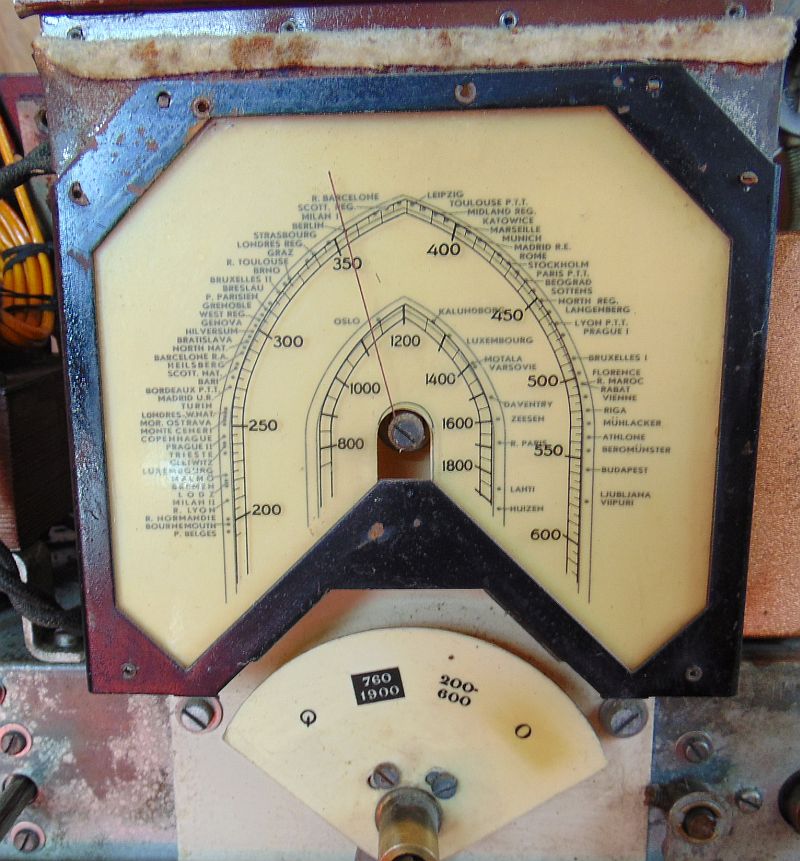

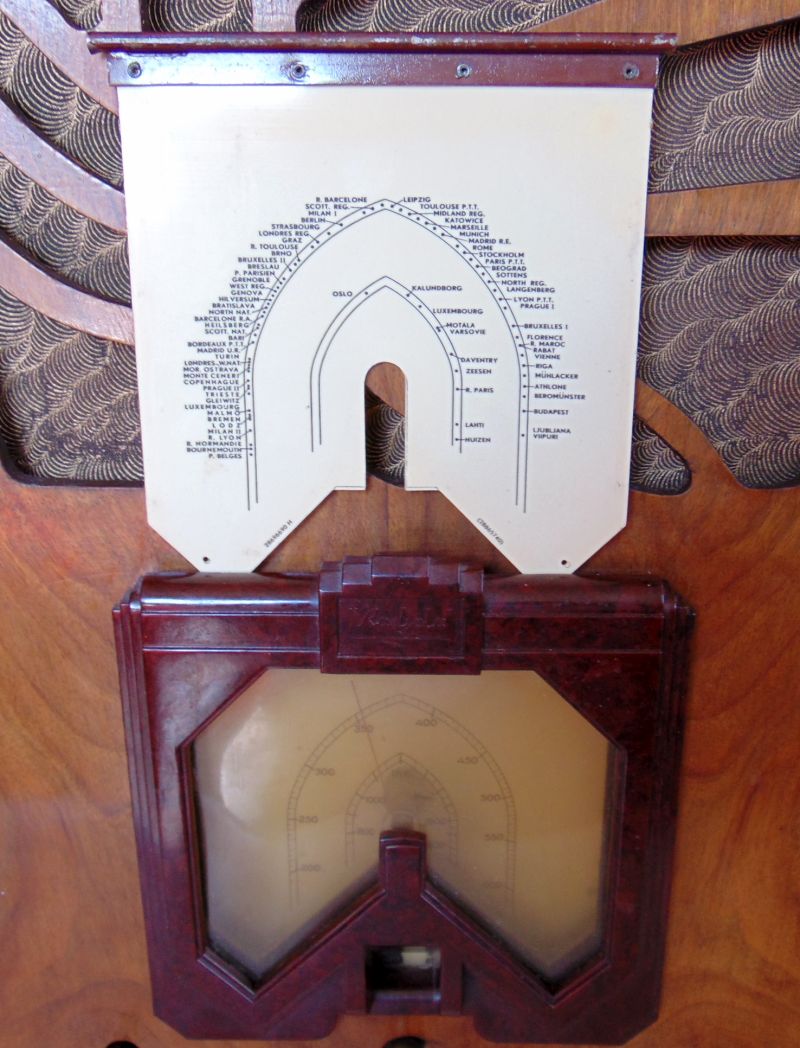

Das ist mir erst jetzt aufgefallen, weil es beim Aus- und Einbau des Chassis irgendwo klemmte. Die Skala besteht aus zwei Teilen: Einem festen Rahmen mit nur den Wellenlängen (auf Bild 1 unten) und der einschiebbaren Karte mit den Stationsnamen (Bild 1 oben), die - weil nicht voll eingeschoben - die Ursache des Hängenbleibens  war. Dennoch durchdacht: Man kann die Karte von vorne herausziehen, ohne Eingriff in das Innere.

Attachments

Harald Giese
03.Apr.20
  2

Wie sich die Bilder ähneln! Auch der PHILIPS Super Inductance 638 hatte so eine Wechselskala:

Mit zunehmender Vermarktung der Geräte im Ausland bestand wohl Interesse daran, sie mit einer dem jeweiligen Land angepassten Skala auszustatten.


Radiola marque: RA549A
End of forum contributions about this model
