For model RA74A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 ECF1 EBL1 AZ1 EM4
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RA74A - Radiola marque
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 360 x 210 mm / 19.3 x 14.2 x 8.3 inch
Notes

4 gammes d'ondes : OC1 (gamme étalée) de 24.8 à 26.1 m, OC2 de 16 à 51 m, PO de 190 à 570 m, GO de 1150 à 2000 m. Dispositif de contre-réaction à 3 positions.

Équivalent au Philips BF472A.

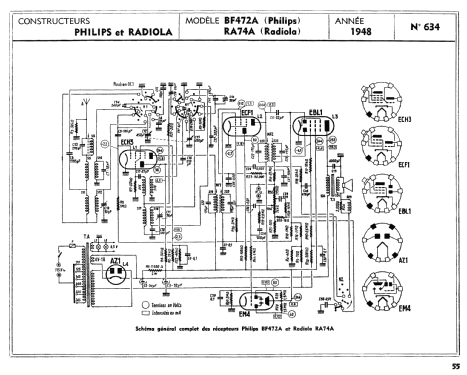

Mentioned in Schémathèque Éditions Radio (SER) (No. 634)

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 824 models, 519 with images and 268 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
