RA751A

RA751A; Radiola marque (ID = 2282050) Radio

RA751A; Radiola marque (ID = 2282051) Radio

RA751A; Radiola marque (ID = 2282053) Radio

RA751A; Radiola marque (ID = 2282054) Radio
RA751A; Radiola marque (ID = 2282048) Radio RA751A; Radiola marque (ID = 2282049) Radio
Use red slider bar for more.

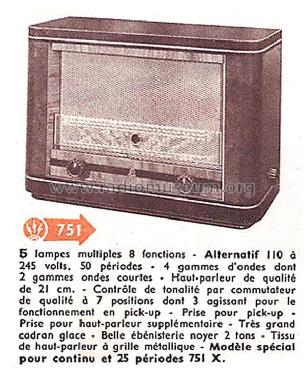

RA751A; Radiola marque (ID = 2282048) Radio
Radiola marque: RA751A [Radio] ID = 2282048 600x731
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA751A, Radiola (marque):
Dépliant Radiola

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1947–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 ECF1 EBL1 AZ1 EM4
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 230; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: RA751A - Radiola marque
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 380 x 240 mm / 20.9 x 15 x 9.4 inch
Notes

4 gammes d'ondes dont 2 OC. Commutateur de tonalité 7 positions dont 4 en radio et 3 en PU.

Ébénisterie noyer 2 tons. Tissu de HP à grille métallique.

Équivalent au Philips BF570A. Prix en 1950.

Dans un dépliant Radiola avec date inconnue, le modèle est décrit comme ayant cinq gammes d'ondes. C'est probablement une erreur.

Price in first year of sale 30'950.00 FRF
Mentioned in - - Manufacturers Literature (Prix courant, Septembre 1950)
Literature/Schematics (1) -- Original prospect or advert
Literature/Schematics (2) Schémathèque Sorokine (SRK) (No. 632)

Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.
