RA97A

• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 101134

• • Brand: SFER

• Picture

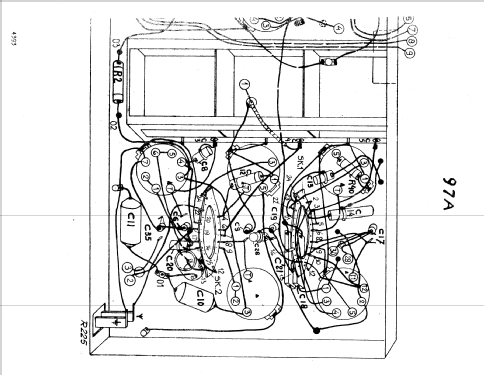

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 EFM1 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: RA97A - Radiola marque

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 400 x 524 x 227 mm / 15.7 x 20.6 x 8.9 inch

• Notes

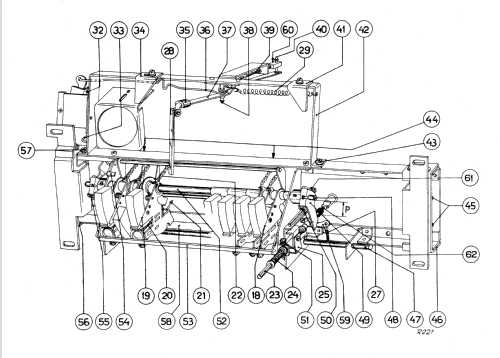

• Automatic tuning system Linodyne. Loudspeaker 9636.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by John Koster. See "Data change" for further contributors.
