Autoradio 1950
Amroh NV (Radio Bulletin monthly), Muiden
- Country
- Netherlands
- Manufacturer / Brand
- Amroh NV (Radio Bulletin monthly), Muiden
- Year
- 1950
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 223639

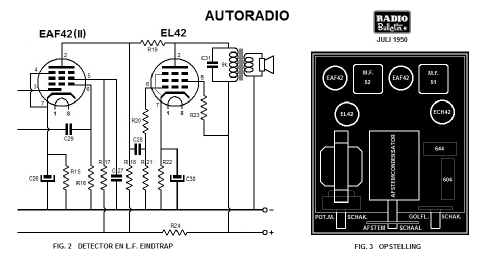

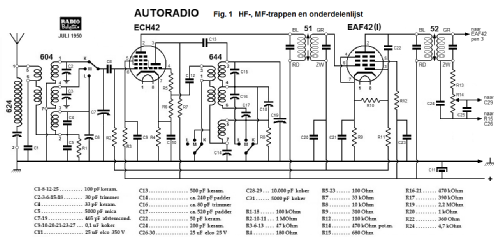

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 471 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / AC 220 / DC 6 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2.5 W (max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Autoradio 1950 - Amroh NV Radio Bulletin
- Shape
- Chassis only or for «building in»
- Literature/Schematics (1)

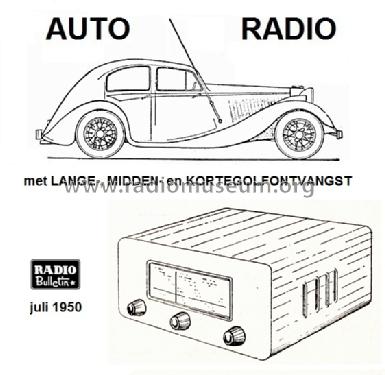

- Radio Bulletin (Juli 1950)
- Author
- Model page created by Rob Majoor. See "Data change" for further contributors.
