VHF-Transformer UBT-1A

VHF-Transformer UBT-1A; Radiometer; (ID = 1038731) Equipment VHF-Transformer UBT-1A; Radiometer; (ID = 1038732) Equipment
VHF-Transformer UBT-1A; Radiometer; (ID = 1038733) Equipment VHF-Transformer UBT-1A; Radiometer; (ID = 1038734) Equipment
Use red slider bar for more.
VHF-Transformer UBT-1A; Radiometer; (ID = 1038731) Equipment
Radiometer;: VHF-Transformer UBT-1A [Equipment] ID = 1038731 933x712
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHF-Transformer UBT-1A, Radiometer; Copenhagen:

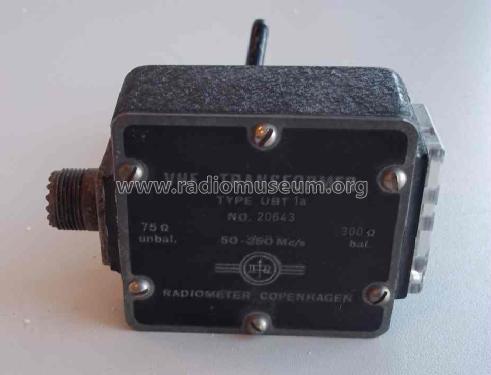

Top view of unit

Country:  Denmark
Manufacturer / Brand:  Radiometer; Copenhagen
Year: 1955 ?? Category: Service- or Lab Equipment
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: VHF-Transformer UBT-1A - Radiometer; Copenhagen
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 60 x 120 x 95 mm / 2.4 x 4.7 x 3.7 inch
Notes VHF Transformer 75 Ohm unbalanced (SO-239) / 300 Ohm balanced. 50-250 MHz.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data - - Data from my own collection

Model page created by Anders Sandgren. See "Data change" for further contributors.
