Mylord
Radiomuse, A. Robert: Mylord [Radio] ID = 2002975 225x169
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1938/1939 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: 6A8 6K7 6Q7 6F6 6G5 5Y3 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 470 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch |
| Power out | 4.3 W (unknown quality) |
| from Radiomuseum.org | Model: Mylord - Radiomuse, A. Robert; Paris, |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 530 x 285 x 255 mm / 20.9 x 11.2 x 10 inch |

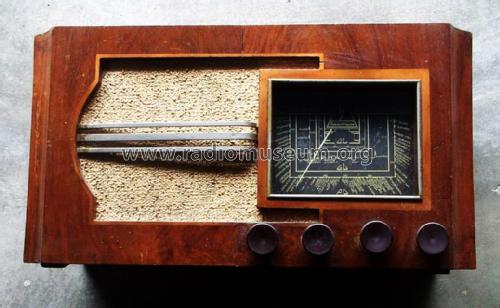

| Notes | 3 gammes d'ondes: OC de 19 à 53 m, PO de 185 à 560 m, GO de 900 à 2000 m. Anti-fading. Réglage de tonalité progressif. Prise pour HP supplémentaire. Lampes cadran : 4 x 6.3 V / 0.3 A. Ébénisterie noyer verni, avec décor barres métalliques devant le haut-parleur. Alimentation secteur alternatif 50 périodes, modèle spécial pour 25 périodes. |
| Net weight (2.2 lb = 1 kg) | 11.3 kg / 24 lb 14.2 oz (24.89 lb) |
| Price in first year of sale | 1'690.00 FRF |

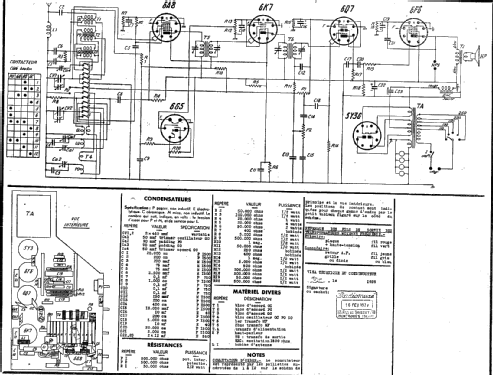

| Circuit diagram reference | La Documentation du Revendeur - Radio |
Model page created by Peter Hoddow. See "Data change" for further contributors.
