439-A Type 1939

439-A; Radione RADIO (ID = 75647) Radio

439-A; Radione RADIO (ID = 288786) Radio

439-A; Radione RADIO (ID = 359460) Radio
439-A; Radione RADIO (ID = 57288) Radio 439-A; Radione RADIO (ID = 35669) Radio
439-A; Radione RADIO (ID = 35670) Radio 439-A; Radione RADIO (ID = 35667) Radio
439-A; Radione RADIO (ID = 35671) Radio 439-A; Radione RADIO (ID = 280825) Radio
439-A; Radione RADIO (ID = 280826) Radio 439-A; Radione RADIO (ID = 280827) Radio
439-A; Radione RADIO (ID = 280828) Radio 439-A; Radione RADIO (ID = 421926) Radio
Use red slider bar for more.

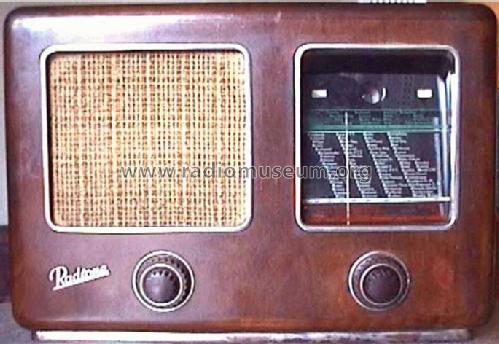

439-A; Radione RADIO (ID = 57288) Radio
Radione RADIO: 439-A [Radio] ID = 57288 686x473
Select picture or schematic to display from thumbnails on the right and click for download.
For model 439-A Type 1939, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF9 EBL1 AZ1 EM1
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105,125,150,220,240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 439-A [Type 1939] - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 460 x 320 x 260 mm / 18.1 x 12.6 x 10.2 inch
Notes Evtl. nur Export Schweiz (Thali?)
Price in first year of sale 248.00 RM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Radione (RADIO Nikolaus Eltz); Wien
Here you find 506 models, 345 with images and 315 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
