440B

440B; Radione RADIO (ID = 288793) Radio

440B; Radione RADIO (ID = 22117) Radio
440B; Radione RADIO (ID = 2282) Radio 440B; Radione RADIO (ID = 285983) Radio
Use red slider bar for more.
440B; Radione RADIO (ID = 2282) Radio

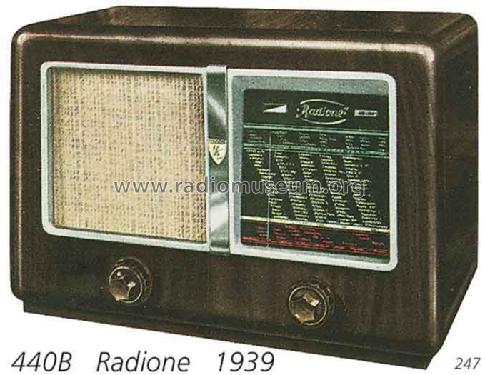

Radione RADIO: 440B [Radio] ID = 2282 679x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 440B, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: KK2 KF3 KBC1 KL4
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 135+2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 440B - Radione RADIO Nikolaus Eltz;
Material Wooden case
Dimensions (WHD) 470 x 325 x 260 mm / 18.5 x 12.8 x 10.2 inch
Notes var.BBr.;ZF128,5
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 228.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Handbuch WDRG 1939 / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
