541B; Radione RADIO (ID = 1956877) Radio

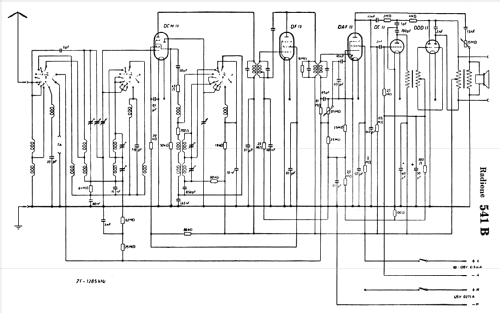

Radione RADIO: 541B [Radio] ID = 1956877 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 541B, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DCH11 DF11 DAF11 DC11 DDD11
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 541B - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 325 x 240 mm / 18.5 x 12.8 x 9.4 inch
Notes 90-120+1,25V;ZF128,5
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
